Machine Vision Solutions

MRTech company provides integrated machine vision solutions and image processing system for clients. As a Technology Partner of XIMEA we perfectly know and work with advanced industrial XIMEA cameras, use own high-performance software for image processing, other technologies when needed. Here are some of our Machine Vision cases.

Please send request if you are interested in the solution.

Tegra Kit for Drone

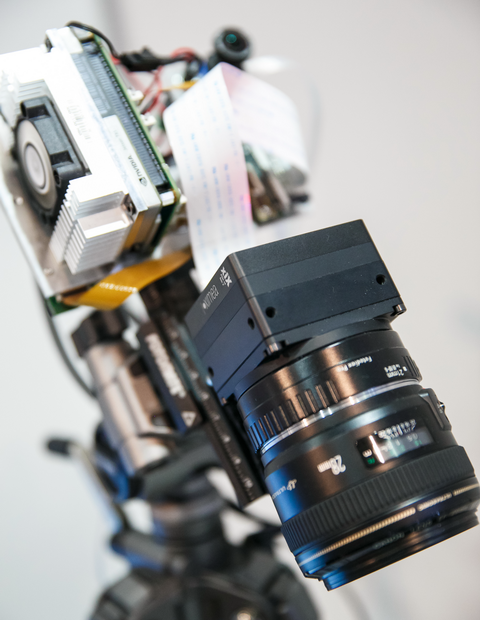

We offer our customers compact comprehensive solution based on the NVIDIA Jetson TX2 supercomputer module for multi-camera embedded, 3D Vision, airborne and other mobile applications. The solution includes XIMEA cameras, NVIDIA / XIMEA computer hardware and MRTech SK software.

Applications

  • Drones and UAV, Aerial mapping system
  • Autonomous Robotic Systems
  • Industrial Embedded Imaging
  • 3D Vision





Cameras configuration

In total, up to eight XIMEA cameras can be used and connected to Jetson in the system, including:

  • 4x PCIe X2G2 cameras with ribbon camera interfaces
  • 1x PCIe X4G2 camera with ribbon camera interfaces
  • 2x USB 3.1 Gen1 cameras with ribbon camera interfaces
  • 1x USB 3.1 Gen1 camera with standard USB Type A cable





Hardware Configuration

Base module – NVIDIA® Jetson TX2 System-on-Module with:

  • GPU: NVIDIA Pascal™, 256 CUDA cores
  • CPU: Dual Denver2 plus Quad ARM® A57
  • Memory: 8 GB LPDDR4
  • Storage: 32 GB eMMC

xEC2 carrier board – specialized carrier for NVIDIA® Jetson TX2 module specially designed by XIMEA to connect customized PCIe and USB3 cameras of xiX / xiC / xiQ series.
xEC2 carrier board has the following interfaces:

  • 4x PCIe X2G2 connectors for ribbon camera interfaces
  • 1x PCIe X4G2 connectors for ribbon camera interfaces
  • 2x USB3 connectors for ribbon camera interfaces
  • GPIO connector and GPIO DIP switches
  • Ethernet
  • HDMI
  • M.2 interface
  • USB3 Type-A connector
  • USB2 Micro-B connector
  • Jetson pinout
  • Power connector
  • Fan power connector

Accessories: power supply 12V, 40W and Wi-Fi antenna.
Wi-Fi antenna connectors are located on Jetson TX2 module.

Software

Tegra kit for drone has all necessary software to start using it in a customer application. Uploaded software package includes:

  • Linux for Tegra (L4T) operating system
  • CUDA 9 and other necessary utilities
  • XIMEA xiAPI with CamTool demo application
  • MRTech run-time application with implemented pipelines for all connected cameras:
    • acquisition -> black level -> white balance -> demosaic
    • SSD writing, gain control, autoexposure and other as options
    • H.264/H.265 encoding -> RTSP streaming via Ethernet and wi-fi
  • Application to control cameras aperture and exposure

When necessary, MRTech SK provides customization of its software to the customer’s requirements.



Receiving station

RTSP streams from all cameras can be received using VLC app on one of the devices such as Macbook with MacOS, desktop / notebook with Windows or Linux OS, Apple devices such as iPhone, iPad 2, etc.

MRTech SK offers its own HW/SW solution for the receiving station.



Testbenches

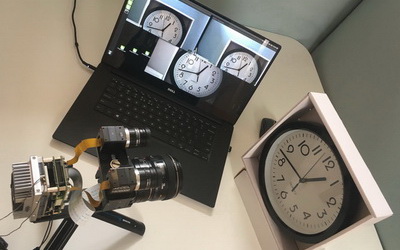

1). Test with 3.1Mpix XIMEA MX031CG camera and desktop receiving station with Quadro P2000 GPU over Wi-Fi:

  • 70FPS, 17ms between frames
  • exposure time: 1ms
  • PCIe data transfer: 4ms
  • processing pipeline: 10ms for the camera
  • network: 1ms average
  • display FPS: 144, 7ms between frames

Measured glass-to-glass latency:

  • full resolution 1 camera: 35-66ms, average/median 50ms
  • 1080p/720p ROI: decrease of ~5ms, which is not measurable in this test (less than accuracy)

2). Test with two 3.1Mpix XIMEA MX031CG cameras and desktop receiving station with Quadro P2000 GPU over Wi-Fi:

  • 60FPS, 17ms between frames for each camera
  • exposure time: 1ms
  • PCIe data transfer: 4ms
  • processing pipeline: 15ms for both cameras
  • network: 1ms average
  • display FPS: 144, 7ms between frames

Measured glass-to-glass latency:

  • full resolution 2 cameras: 50-68ms, average/median 60ms

Multi-camera embedded system

Application:

  • Panoramic real-time video
  • Industrial multi-camera systems

Cameras and hardware:

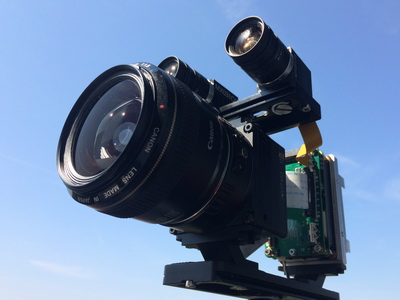

  • Three xiC/xiX XIMEA cameras 3.1 MPix, up to 122 fps each
  • NVIDIA Jetson TX2 module with custom carrier

Image processing:

  • Full pre-processing workflow – acquisition, black level, white balance, demosaicing etc
  • Render on the screen or H.264 encoding and streaming

Results:

  • 55 FPS with 3 cameras running at the same time with 9 ms processing latency
  • Power usage 22W (including cameras)

Additional features and options:

  • On demand customization and external devices
  • Implementation of MV algorithms such as stitching



Multi-camera embedded system

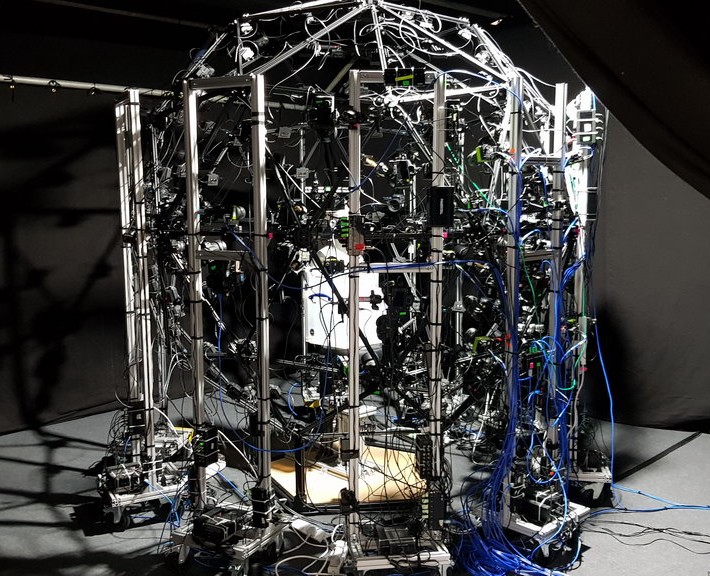

High-performance or high-speed camera desktop system

Application:

  • 360 Panorama, VR and AR – Virtual and Augmented reality
  • Sports imaging and broadcast, Cinematography and Entertainment

Cameras:

  • High-performance (up to 49 MPix) and high-speed (up to 3500 FPS) XIMEA xiB/xiB-64 cameras with PCIe interfaces

Hardware:

  • Powerful Intel computer
  • One or two top NVIDIA cards (GTX1080 and higher)
  • Standard and customized PCIe adapters

Image processing:

  • Full pre-processing workflow – acquisition, black level, white balance, demosaicing, denoise
  • Color image CUDA processing – rendering on a screen, format transformations, etc
  • Encoding/decoding and streaming
  • Disk writing

Results:

  • Data bandwidth from 16 Gbit/s to 64 Gbit/s, with real data throughput up to 7000 MB/s
  • Maximum performance for particular hardware/software configuration
  • Zero latency processing (from several ms to scores of ms)

Additional features and options:

  • Cameras synchronization, setup customization on demand
  • Implementation of real time video processing algorithms
